Toggle Button Card

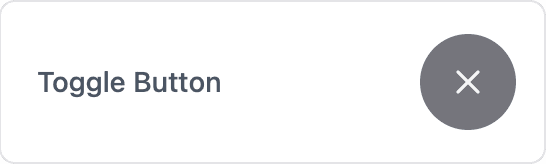

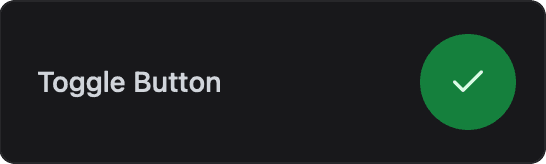

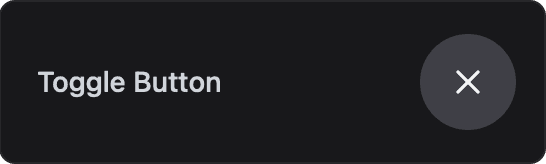

The toggle button card displays a boolean state and lets the user switch it from the dashboard. Use it to control relays, LEDs or any feature that is either on or off.

ConstructorCopy Anchor Link

dash::ToggleButtonCard card(dashboard, name);

dash::ToggleButtonCard is not a template; its value type is bool.

An overload without the dashboard argument creates the card without attaching it to a dashboard; attach it later with dashboard.add(card).

CallbackCopy Anchor Link

void onChange(std::function<void(bool state)> callback);

The callback fires when the user clicks the button on the dashboard. state is the state requested by the user.

The card does not update its own value when the callback fires. Call setValue(state) and then dashboard.sendUpdates() inside the callback to confirm the new state on the dashboard.

dash::ToggleButtonCard light(dashboard, "Light");

// in setup()
light.onChange([](bool state) {
  digitalWrite(LED_BUILTIN, state ? HIGH : LOW);
  light.setValue(state);
  dashboard.sendUpdates();
});

MethodsCopy Anchor Link

setValue()Copy Anchor Link

bool setValue(const bool& value);

Sets the state: true for on, false for off. Returns true if the state changed.

value()Copy Anchor Link

const bool& value() const;

Returns the current state. Call it only when hasValue() returns true.

hasValue()Copy Anchor Link

bool hasValue() const;

Returns true if a state has been set.

toggle()Copy Anchor Link

bool toggle();

Inverts the current state. If no state has been set, the card switches to on. Returns true if the state changed.

on()Copy Anchor Link

bool on();

Sets the state to on. Returns true if the state changed.

off()Copy Anchor Link

bool off();

Sets the state to off. Returns true if the state changed.

ExampleCopy Anchor Link

#include <Arduino.h>
#include <WiFi.h>              // ESP32; use the networking headers for your board
#include <AsyncTCP.h>
#include <ESPAsyncWebServer.h>
#include <ESPDash.h>

AsyncWebServer server(80);
ESPDash dashboard(server);

dash::ToggleButtonCard light(dashboard, "Light");

void setup() {
  Serial.begin(115200);
  pinMode(LED_BUILTIN, OUTPUT);
  // ... connect to Wi-Fi

  light.onChange([](bool state) {
    Serial.printf("Light: %s\n", state ? "on" : "off");
    digitalWrite(LED_BUILTIN, state ? HIGH : LOW);
    light.setValue(state);
    dashboard.sendUpdates();
  });

  light.off();
  server.begin();
}

void loop() {
  // ...
}
