You are reading the documentation for ESP-DASH v4.x.x, which is no longer the latest release. View the v5.x.x documentation.Widget Size
Set the responsive width of ESP-DASH Pro v4 cards and charts per screen breakpoint with setSize().

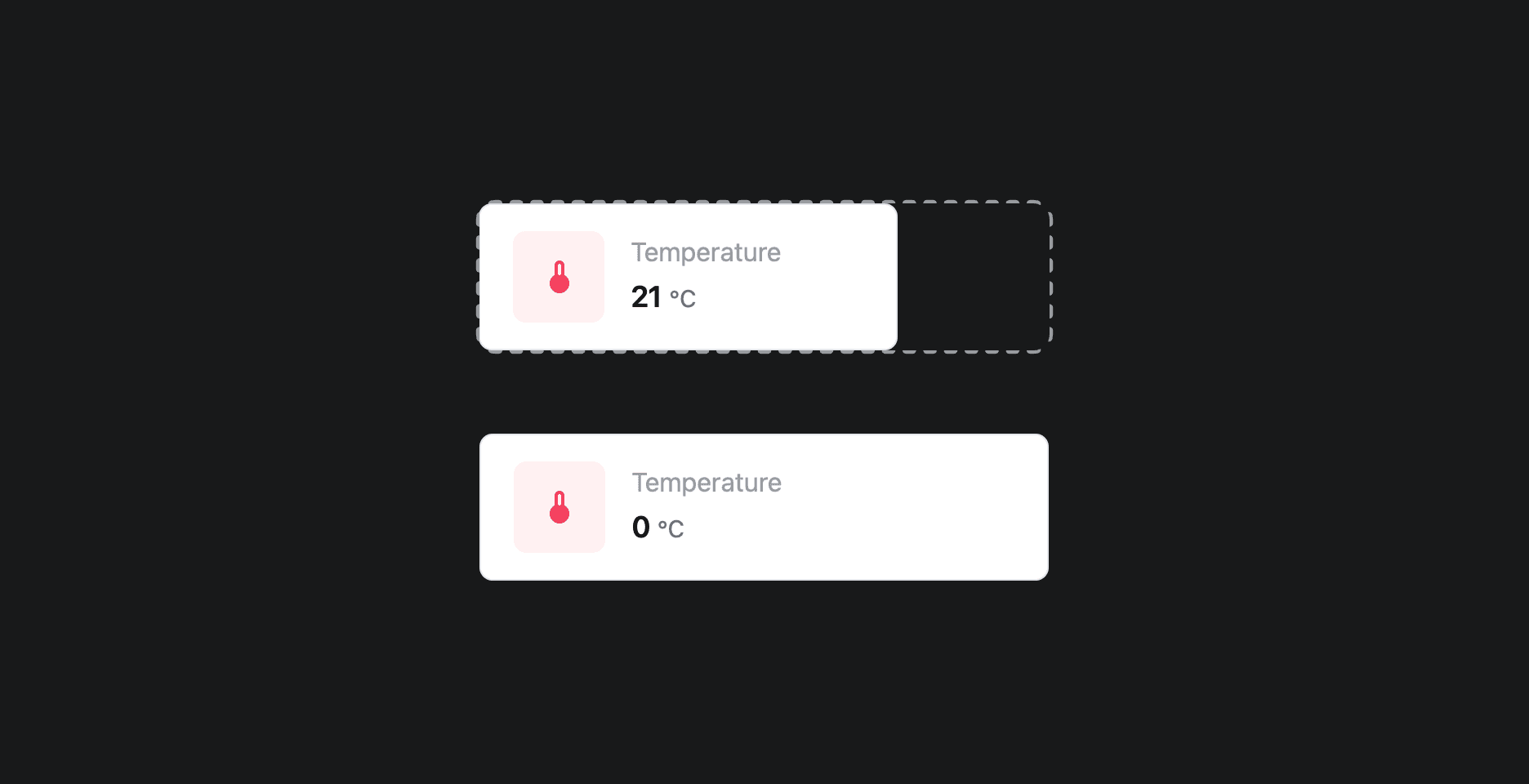

ESP-DASH Pro feature. This functionality is available only in the commercial edition of ESP-DASH.setSize() sets the responsive width of a card or chart. You define a width for each screen breakpoint, and the dashboard layout adapts to the screen size without changes to the webpage.
Breakpoints
Each breakpoint accepts a value from 1 to 12.
Prop
Type
Methods
setSize() has two overloads, declared in Card.h of ESP-DASH Pro.
setSize(xs, sm, md, lg, xl, xxl)
Pass each breakpoint as a separate argument:
void setSize(const uint8_t xs, const uint8_t sm, const uint8_t md, const uint8_t lg, const uint8_t xl, const uint8_t xxl);card1.setSize(12, 12, 6, 4, 3, 2);setSize(const CardSize &size)
Pass a CardSize structure:
struct CardSize {
uint8_t xs;
uint8_t sm;
uint8_t md;
uint8_t lg;
uint8_t xl;
uint8_t xxl;
};
void setSize(const CardSize &size);card1.setSize({
.xs = 12,
.sm = 12,
.md = 6,
.lg = 4,
.xl = 3,
.xxl = 2
});
