You are reading the documentation for ESP-DASH v4.x.x, which is no longer the latest release. View the v5.x.x documentation.Password Card
Collect passwords and other secrets through a masked input field on the ESP-DASH Pro v4 dashboard.

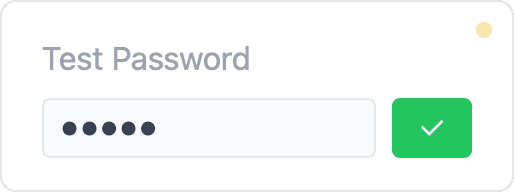

ESP-DASH Pro feature. This functionality is available only in the commercial edition of ESP-DASH.The password card collects sensitive text, such as passwords or secrets. The dashboard masks the input, and the value is not sent back to the dashboard.
Constructor
Card pass(&dashboard, PASSWORD_CARD, "WiFi Password");Prop
Type
Callback
The callback fires when the user submits a value on the dashboard. value is the submitted string. Because the value is never displayed on the dashboard, no update() call is required.
pass.attachCallback([&](const char* value) {
// Store or apply the value
});Example
#include <Arduino.h>
#if defined(ESP8266)
#include <ESP8266WiFi.h>
#include <ESPAsyncTCP.h>
#elif defined(ESP32)
#include <WiFi.h>
#include <AsyncTCP.h>
#endif
#include <ESPAsyncWebServer.h>
#include <ESPDash.h>
const char* ssid = "YOUR_SSID";
const char* password = "YOUR_PASSWORD";
AsyncWebServer server(80);
ESPDash dashboard(&server);
String storedPassword;
Card pass(&dashboard, PASSWORD_CARD, "WiFi Password");
void setup() {
Serial.begin(115200);
WiFi.mode(WIFI_STA);
WiFi.begin(ssid, password);
if (WiFi.waitForConnectResult() != WL_CONNECTED) {
Serial.println("WiFi connection failed");
return;
}
Serial.print("IP address: ");
Serial.println(WiFi.localIP());
pass.attachCallback([&](const char* value) {
storedPassword = value;
Serial.println("Password received");
});
server.begin();
}
void loop() {
// ...
}Notes
- The password card does not need
update(), since its value is not passed back to the dashboard.
