Parameters
Header, Divider and Spacer
Structure the NetWizard configuration page with header, divider and spacer parameters.
Header, divider and spacer parameters do not collect input or hold a value. Use them to split the configuration page into sections. Like all parameters, they appear in declaration order.

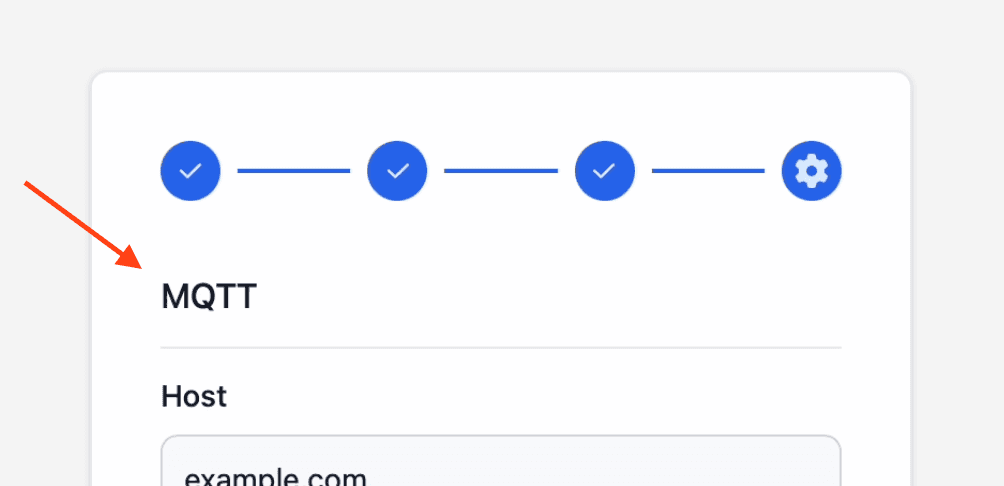

Header
A header displays a section title on the configuration page.
NetWizardParameter nw_header(&NW, NW_HEADER, "MQTT");Prop
Type

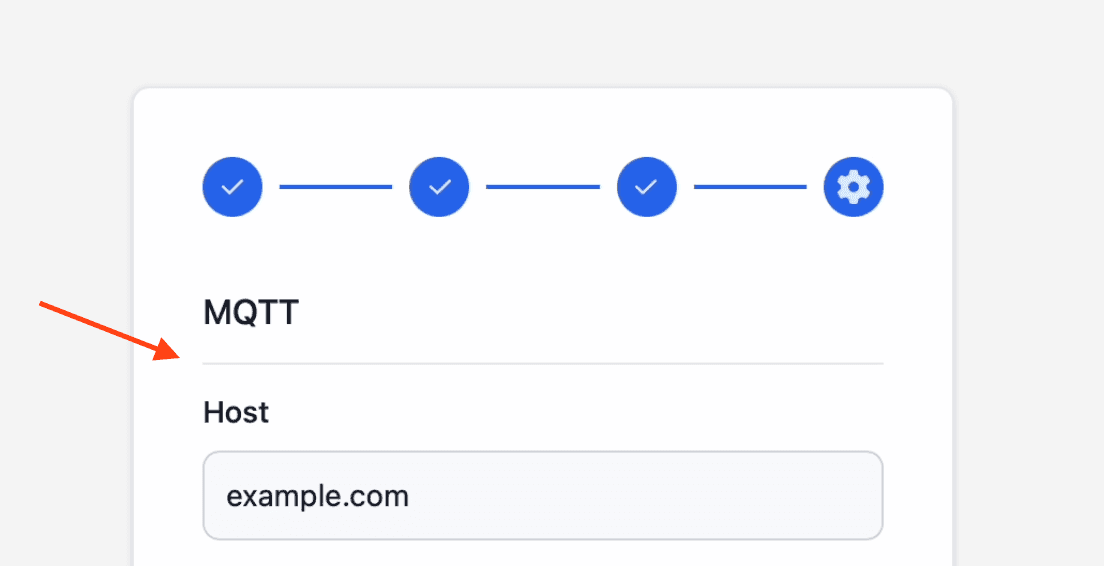

Divider
A divider draws a horizontal line between parameters.
NetWizardParameter nw_divider(&NW, NW_DIVIDER);Spacer
A spacer adds empty vertical space between parameters.
NetWizardParameter nw_spacer(&NW, NW_SPACER);Example
#include <WebServer.h>
#include <NetWizard.h>
WebServer server(80);
NetWizard NW(&server);
NetWizardParameter nw_header(&NW, NW_HEADER, "MQTT");
NetWizardParameter nw_divider(&NW, NW_DIVIDER);
NetWizardParameter nw_host(&NW, NW_INPUT, "Host", "", "mqtt.example.com");
NetWizardParameter nw_spacer(&NW, NW_SPACER);
NetWizardParameter nw_port(&NW, NW_INPUT, "Port", "", "1883");
void setup() {
NW.autoConnect("NetWizard Demo", "");
server.begin();
}
void loop() {
NW.loop();
}
