Auto Update

In Auto mode, the device updates itself. You compile an update channel into the firmware: a URL that points to a small JSON manifest describing the latest release. The device fetches the manifest on a schedule, compares the advertised version with its own, and can install the new firmware without anyone opening the portal.

Auto mode is designed for fleets of devices that you cannot reach individually.

The manifestCopy Anchor Link

Host a manifest like the following anywhere the device can reach over HTTP or HTTPS, for example in object storage, as a GitHub release asset or on your own server:

{
  "version": "1.2.0",
  "url": "https://example.com/firmware/my-device-1.2.0.bin",
  "md5": "6f5902ac237024bdd0c176cb93063dc4",
  "notes": "Reconnects to Wi-Fi after a router reboot"
}

• All values must be JSON strings, and only top-level fields are read. Unknown fields are ignored, so you can keep your own metadata in the same file.
• A manifest whose reported size (Content-Length) exceeds 4096 bytes is rejected. Keep the manifest small.
• An update channel always carries firmware; the manifest has no field to select a target. A filesystem image has no version for the device to compare against, so write one with File or Direct Download, where you choose the target explicitly.

Set up an update channelCopy Anchor Link

ElegantOTA.setFWVersion("1.0.0");

ElegantOTA.setUpdateURL("https://example.com/firmware/latest.json");

ElegantOTA.setCheckInterval(6 * 60 * 60 * 1000UL);   // Every 6 hours

ElegantOTA.setAutoInstall(true);    // Install as soon as a newer version is found

Version comparisonCopy Anchor Link

The numeric parts of the versions are compared field by field, so 1.10.0 is newer than 1.9.4. A leading v is ignored. A pre-release suffix after a hyphen sorts below the same version without a suffix, and two pre-release suffixes are compared as text.

Versions that contain no digits, such as build hashes or code names, are considered newer whenever they differ from the running version.

React to a new versionCopy Anchor Link

onUpdateAvailable fires whenever a check finds a newer version. Use it to decide when to install, for example when the device is idle, when the battery is charged or after a user confirms the update.

void onUpdateAvailable(const char* version, const char* notes) {
  Serial.printf("Version %s is available\n", version);
  if (strlen(notes)) Serial.println(notes);

  if (machineIsIdle()) {   // Your own condition
    ElegantOTA.installUpdate();
  }
}

void setup() {
  // ...
  ElegantOTA.begin(&server);
  ElegantOTA.onUpdateAvailable(onUpdateAvailable);
}

The callback fires on every check that finds a newer version, not only on the first. If auto install is enabled, the installation starts after the callback returns.

During the installation, the regular callbacks onStart, onProgress and onEnd fire, and ElegantOTA.source() returns OTA_SOURCE_CHANNEL.

Check on demandCopy Anchor Link

setCheckInterval() starts its timer when you call it, so the first scheduled check takes place one interval later. To check at boot as well, call checkForUpdate():

ElegantOTA.begin(&server);
ElegantOTA.checkForUpdate();    // Check once now

checkForUpdate() and installUpdate() queue the work and return immediately. The manifest and the firmware are fetched in ElegantOTA.loop(), so make sure your sketch calls it. Scheduled checks are skipped while a download is in progress.

ReferenceCopy Anchor Link

void setUpdateURL(const char * url);          // Manifest URL
const char * getUpdateURL();

void setCheckInterval(uint32_t interval_ms);  // 0 disables scheduled checks
void setAutoInstall(bool enable);             // Install without confirmation (default: false)
bool checkAutoInstall();

bool checkForUpdate();                        // Queue a check now
bool installUpdate();                         // Install the version found by the last check

bool updateAvailable();                       // A newer version was found
const char * availableVersion();              // Its version, or ""
const char * availableNotes();                // Its notes, or ""

void onUpdateAvailable(std::function<void(const char * version,
                                          const char * notes)> callable);

checkForUpdate() returns false if Auto mode is disabled, no update channel is set, or the device is busy. installUpdate() returns false if Auto mode is disabled, no newer version is waiting, the device is busy, or firmware updates are disabled with setFirmwareMode(false).

Disable Auto modeCopy Anchor Link

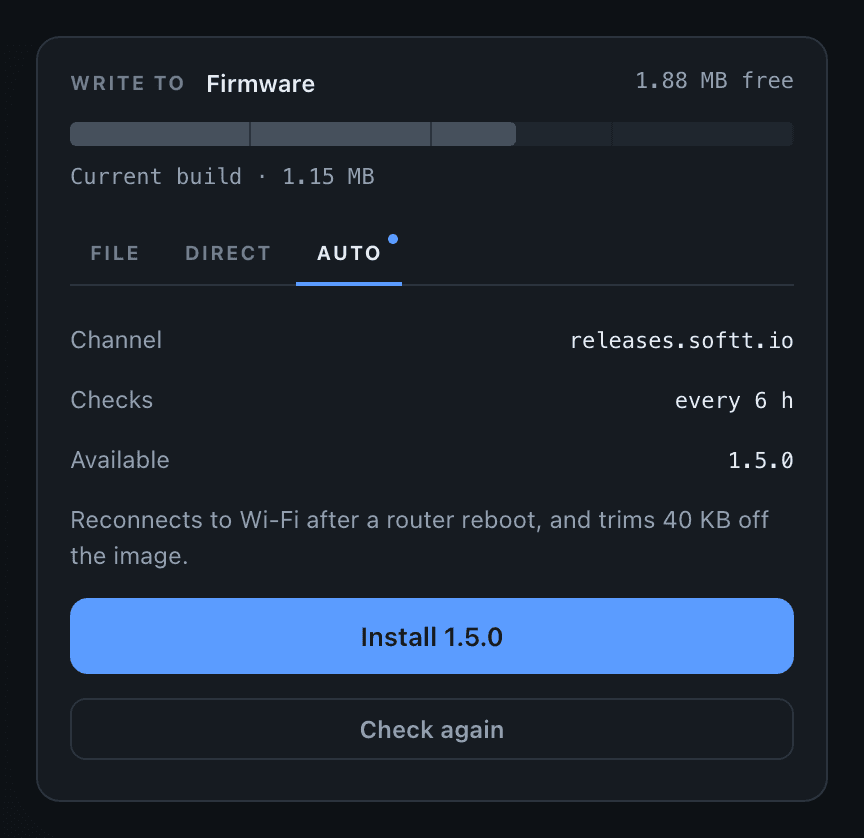

All three OTA modes are enabled by default. Disabling Auto mode stops scheduled checks, removes the Auto tab from the portal, and makes checkForUpdate() and installUpdate() return false:

ElegantOTA.setAutoMode(false);

You can use it to pause automatic updates while a critical task is running and enable them again afterwards:

ElegantOTA.setAutoMode(!machineIsBusy());

Disabling Auto mode differs from not configuring a channel. Without setUpdateURL(), there is nothing to check, and the Auto tab states that no update channel is set. With setAutoMode(false), a channel is configured but deliberately not checked.

if (ElegantOTA.checkAutoMode() == false) {
  Serial.println("Automatic updates are paused");
}

HTTPSCopy Anchor Link

The manifest and the firmware are fetched with the same client, so setCACert() applies to both. See Direct Download for how to pin a root certificate.

Other OTA modesCopy Anchor Link

• File: upload a .bin file from your computer. Available in ElegantOTA Lite and Pro.
• Direct Download: give the device a URL to download a single image.
